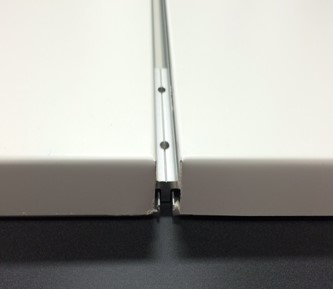

ALUCORE® CLAD
[/vc_column_text][vc_row_inner][vc_column_inner width=”5/6″ css=”.vc_custom_1712297954094{padding-bottom: 10px !important;}”][vc_column_text]ALUCORE® Clad is a Value-Added Cladding System Solution from ALUCOBOND®. It is made of honeycomb panels prefabricated with aluminum extrusions – meaning they are ready to install.

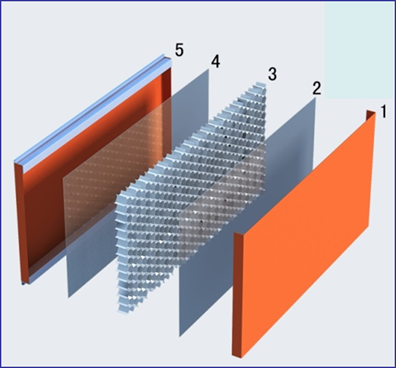

ALUCORE® Clad is comprised of the following:
- The pre-coated Aluminium front skin
- Adhesive
- Aluminum Honeycomb core
- Pre-coated Aluminium back skin and fixing extrusion
Features of ALUCORE® Clad
- Unique, as it combines a custom solution with the best available industrial coating and lamination technology
- ‘Ready to install’ panels which come with different cladding material configurations (finishes/coating/thickness) to suit individual project requirements

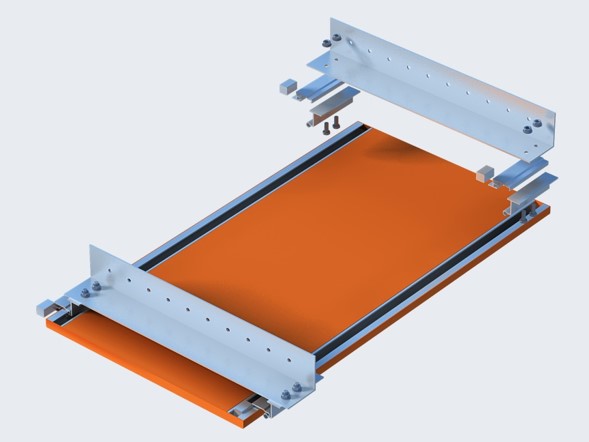

- Panel perimeter fixing anchors both panel skins to the supporting structure, thereby giving a better strength to the overall installation

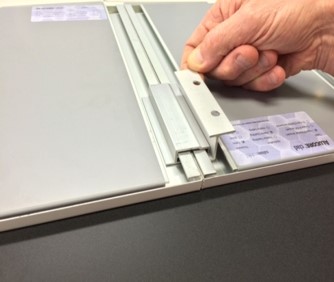

- Pre-fixed extrusions ensure an easy and quick installation, whether horizontal or vertical orientation
- The fixing system used in ALUCORE® Clad allows for quick panel replacement/removal in different structures, rather than having to take out all the panels
ALUCORE® Clad has all the great features of ALUCORE® – combined with a high-quality ‘ready to install’ system for a perfectly designed building.[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/6″ css=”.vc_custom_1712297939599{padding-bottom: 30px !important;}”][vc_single_image image=”4247″ img_size=”full”][/vc_column_inner][/vc_row_inner][edgtf_accordion content_width=”full-width” skin=”light” custom_class=”product-accordion”][edgtf_accordion_tab title_tag=”h4″ title=”Technical Data”][vc_column_text]
| TECHNICAL ITEM | STANDARD | UNIT | Standard T12mm* | Standard T25mm* |
|---|---|---|---|---|
| SURFACE | ||||
| Front Cover Sheet** | mm | 0.7 ~ 1.0 | ||
| Weight | kg / m2 | 5.5 | 6 | |
| Alloy | EN 573-3 | AA5005A(ALMG1),H42 AA3003, H44 | ||
| Coil Coating System | Coil Coating | PVDF\HDP\POLY | ||
| Gloss (Initial Value) | ECCA T2 | % | 30-45 | |
| Pencil Hardness | ECCA T4 | HB-F | ||
| CORE | ||||
| Cell Size | mm | 6.3 – 19 | ||
| Density | kg / mm3 | > 50 | ||
| Thickness of AI Foil | mm | 0.076 | ||
| Bare Compressive Strength | N / mm2 | ≥ 0.8 | ||
| MECHIANICAL PROPERTIES | ||||
| Modules of Elasticity | EN 1999 1-1 | N / mm2 | 70, 000 | |
| Tensile Strength Cover Sheets | EN 485-2 | N / mm2 | Rm ≥ 125 | |
| 0.2% Proof Stress | EN 485-2 | N / mm2 | Pp0.2 ≥ 80 | |
| Elongation | % | A50 ≥ 3 | ||
| Linear Thermal Expansion | EN 1999 1-1 | 2.4mm/m (at 100℃ temperature Difference) | ||
| ACOUSTICAL PROPERTIES | ||||
| Sound Absorption Factor αs | ISO345 | 0.05 | ||
| Sound Insulation Rw | ISO 717-1 EN ISO 6721 |
dB | 15 | 25 |
| THERMAL PROPERTIES | ||||
| Thermal Conductivity λ*** | DIN 52612 | W/mK | 1.35 | 2.7 |
| Thermal Resistance R | DIN 52612 | m2K/W | 0.0047 | 0.0093 |
| Heat Transition Coefficient U | DIN 4108 | W/m2K | 5.65 | 5.58 |
| Flame spreading in the aluminium surface | BS476, Part 7 | Class 1 | ||
| Surface fire performance | BS1991ADB | Class 0 | ||
Footnotes:
* Based on the specific application, there are kinds of thickness, such as 10mm, 15mm, 20mm, etc.
** There are also 0.5mm or 0.7mm for the front cover sheet according to the specific application
*** Re.to total thickness, incl.al-layers

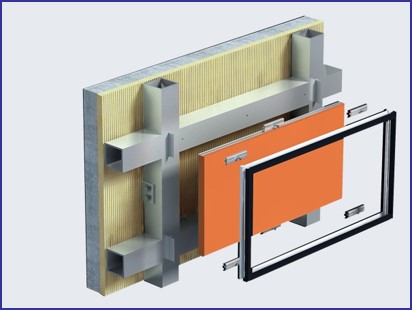

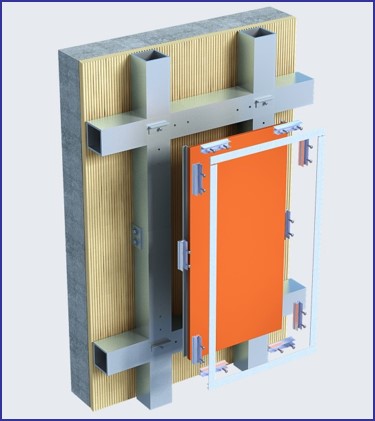

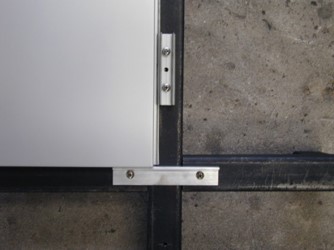

[/vc_column_text][/edgtf_accordion_tab][edgtf_accordion_tab title_tag=”h4″ title=”ALUCORE® Clad Solutions”][vc_column_text css=”.vc_custom_1712299066355{padding-bottom: 25px !important;}”]ALUCORE® clad solutions comes with 3 different fixing systems to choose from, based on the application and design requirement of a given project. All these solutions can be adapted for an Vertical or Horizontal orientation of panels.[/vc_column_text][vc_row_inner css=”.vc_custom_1712299465075{padding-bottom: 15px !important;}”][vc_column_inner width=”3/4″][vc_column_text]Silicon joint system
- Exterior and Interior Wall Cladding/ Roofing
- Between 12mm and 25mm
- Vertical and Horizontal Installation

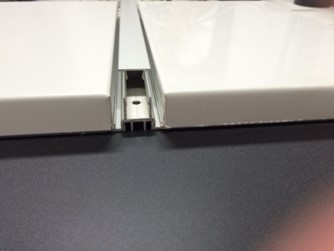

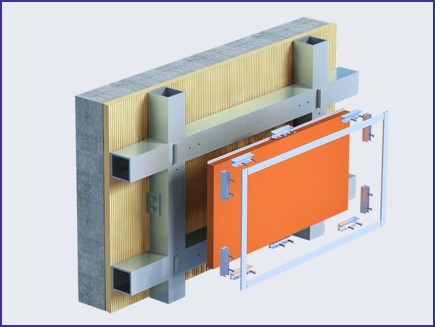

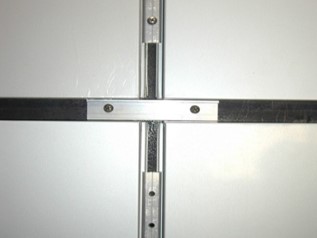

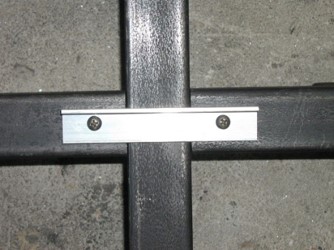

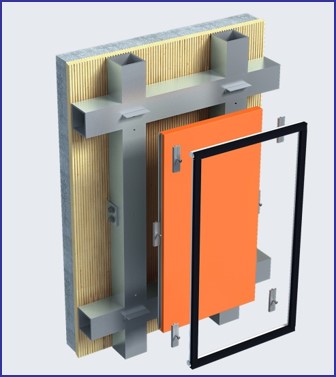

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/4″ css=”.vc_custom_1712299442747{padding-bottom: 20px !important;}”][vc_single_image image=”4254″ img_size=”full” css=”.vc_custom_1712300110778{padding-top: 10px !important;}”][/vc_column_inner][/vc_row_inner][vc_row_inner css=”.vc_custom_1712299474483{padding-bottom: 15px !important;}”][vc_column_inner width=”3/4″][vc_column_text]Metal cover joint system
- Exterior and Interior Wall Cladding/ Roofing
- Between 12mm and 25mm
- Vertical and Horizontal Installation

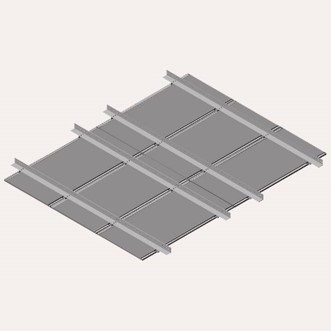

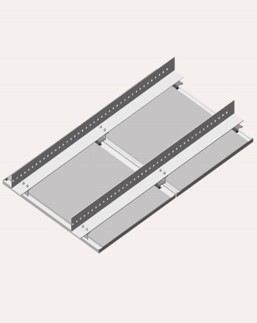

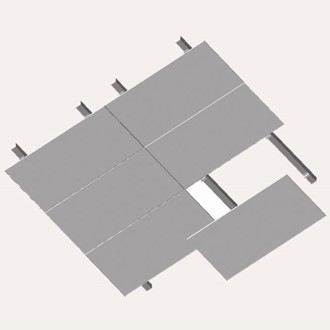

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/4″ css=”.vc_custom_1712299451771{padding-bottom: 20px !important;}”][vc_single_image image=”4255″ img_size=”full” css=”.vc_custom_1712300117871{padding-top: 10px !important;}”][/vc_column_inner][/vc_row_inner][vc_row_inner css=”.vc_custom_1712299479379{padding-bottom: 15px !important;}”][vc_column_inner width=”3/4″ css=”.vc_custom_1712300202784{padding-top: 10px !important;}”][vc_column_text]Interior Ceiling System
- Interior ceilings
- 12mm
- Vertical and Horizontal Installation

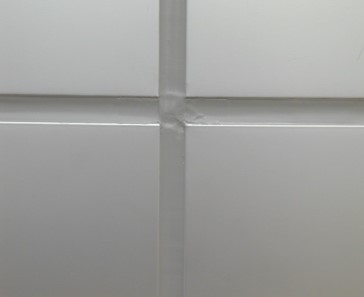

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/4″ css=”.vc_custom_1712299212628{padding-top: 10px !important;padding-bottom: 20px !important;}”][vc_single_image image=”4256″ img_size=”full” css=”.vc_custom_1712300124142{padding-top: 10px !important;}”][/vc_column_inner][/vc_row_inner][vc_tta_accordion style=”flat” color=”black” spacing=”5″ gap=”5″ c_icon=”chevron” c_position=”right” active_section=”4000″ no_fill=”true” collapsible_all=”true”][vc_tta_section title=”Silicon joint system” tab_id=”silicon-joint-system”][vc_column_text]This fixing system is suited for exterior or interior wall cladding application as the name suggests the joints are covered with Silicon sealants.
[/vc_column_text][/vc_tta_section][vc_tta_section title=”Metal cover joint system” tab_id=”Metal-cover-joint-system”][vc_column_text]This system is also suited for exterior or interior wall cladding and the best part about this system is that one can choose the metal strips to either match with the surface finish of Alucore clad or have any other color of choice.
[/vc_column_text][/vc_tta_section][vc_tta_section title=”Interior Ceiling System” tab_id=”interior-ceiling-system”][vc_column_text]This system is ideally suited for interior ceiling applications.
[/vc_column_text][/vc_tta_section][/vc_tta_accordion][/edgtf_accordion_tab][/edgtf_accordion][/vc_column][/vc_row][vc_row][vc_column][vc_empty_space height=”30px”][/vc_column][/vc_row]
